Easy Documentation

Welding data documentation for TransSteel* devices

Welding data documentation is essential, particularly in steel construction. Load-bearing steel structures, mass-produced products or sensitive parts often have to be traceable down to the final welding parameters. The Easy Documentation option enables TransSteel* to record welding data extremely easily.

*except TransSteel 2200C and 2700C and TransSteel devices with production date before July 2020

Easy Documentation PDF report

Customer story

Welding a carport with Fronius TransSteel and Easy Documentation.

Video: Welding data documentation in just a few steps

Welding data documentation in just a few steps

Simply plug the USB flash drive into the back of the welding system (included with the Easy Documentation option)
Check the time and date
"doc | on" is displayed on the control panel
From now on, your welding data will be saved as a CSV file with a Fronius signature

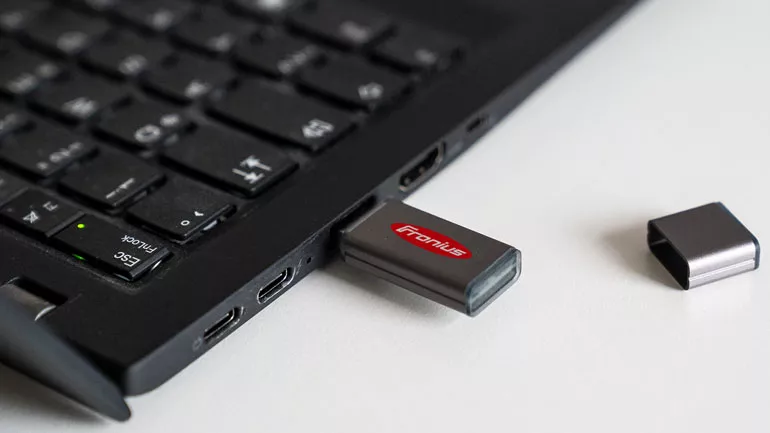

Simply transfer data via USB flash drive, generate a PDF report and check the authenticity of the data using the Fronius signature

Start with Easy Documentation

THE FOLLOWING DATA ARE RECORDED

Power source ID
Firmware version
Serial number
Process (Manual, Standard, Pulse, TIG, MMA)
Current / voltage / wire speed in the main process phase
Power from instantaneous values “IP” (Instantaneous Power) - energy / time (in the main process phase)
Energy from instantaneous values “IE” (Instantaneous Energy) over the entire welding operation
Motor current (in the main process phase)
Time stamp hh:mm:ss when current starts to flow

Counter
Welding duration
Error no. when welding is terminated
Wire speed (metric and imperial)
Characteristic number
Operating mode (2T, S2T, 4T, S4T, spot welding, stitch welding, SynchroPulse)
Signature for each weld seam number
Template for .csv file
Easy Job number
